Spiral Duct forming machine
Spiral Duct forming machine

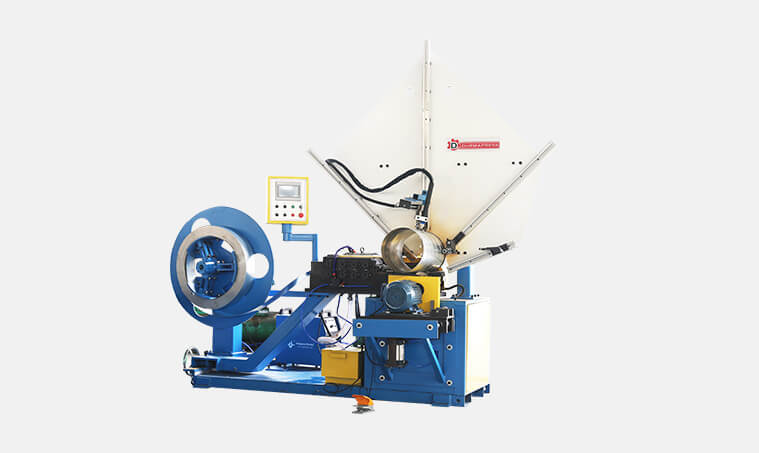

1500mm Spiral duct forming machine is used for producing the HVAC spiral duct. Owing to its excellent performance and low cost, Spiral ductwork has been widely promoted in ventilating and air conditioning systems. It features low wind resistance, high effect, fine rigidity, and convenient installation, thus adapts to the application for large ductwork locations.
Basic Information
The spiral duct machine is mainly used for making round spiral air ducts. The machine can automatically complete round spiral tubes with different diameters and different lengths based on customers’ demand.
Function:
- It has a high-speed synchronous automatic cutting system for cutting
- It is easy to operate and fast to form duct with accurate diameter
- It can ensure the pipe size processed out of precise appearance beautiful
Features:
1, patented mold, easy to adjust, and has its own patent, replace the mold more trouble and save the province of materials
2, high-speed synchronous cutting system
3, PLC control
4, can be on-site construction
5, can be adjusted
6, high-quality products, high-quality services
7, the system can handle galvanized sheet, aluminum
8, automatic roll out of equipment
9, can produce a variety of different diameter spiral tube
Basic Configuration:
- One motor
- One electronic box

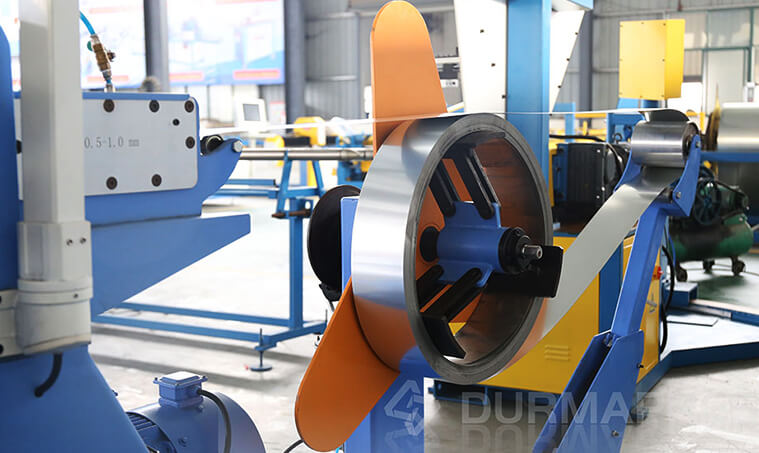

- One electric coil cradles
- One material trays
- One Cutting die
Main Import Configuration:
- Siemens control system from Germany
- Schneider electric system from Germany
- “FESTO” cylinder from Germany
- Hydraulic system from Beijing huade
- OMRON encoder from Japan
Final Products
Choose advanced mechanical design technology, the motor and reducer are integrated to reduce the loss of transmission power
Shipping & Packing
Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.

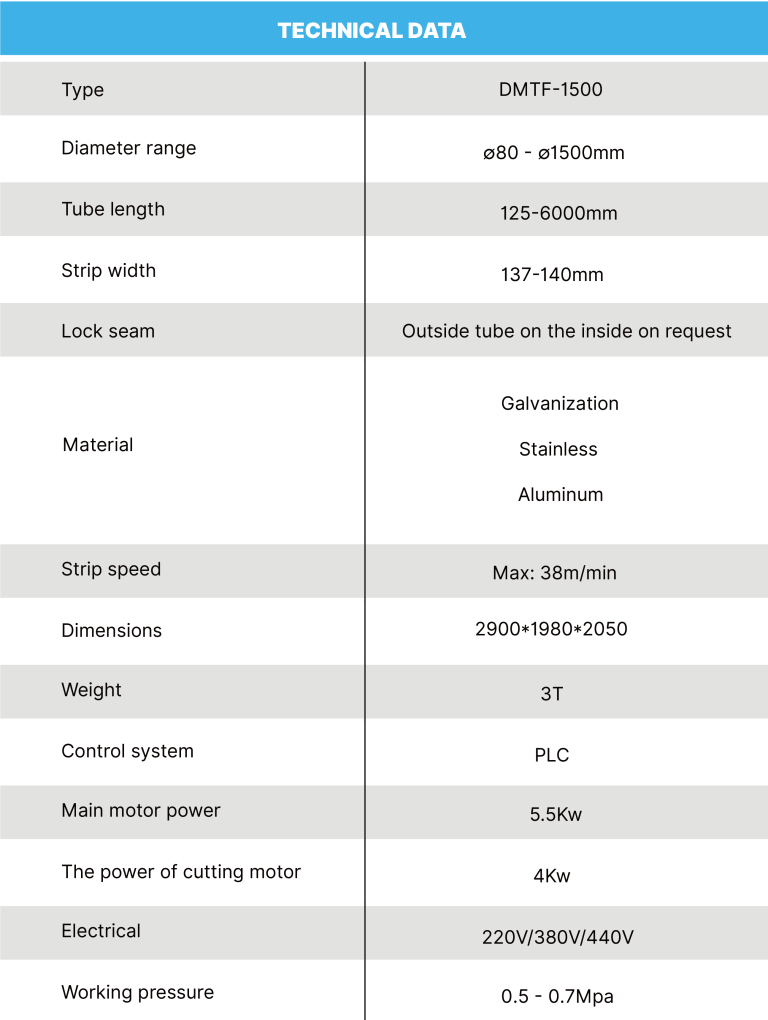

TECHNICAL DATA
| Type | DMTF-1500 | |
| Diameter range | Φ80-Φ1500mm | |
| Tube length | 125-6000mm | |
| Strip width | 137-140mm | |
| Lock seam | Outside tube on the inside on request | |
| Material | Galvanization | 0.4-1.2mm |
| Stainless | 0.4-0.8mm | |
| Aluminum | 0.4-1.2mm | |
| Strip speed | Max: 38m/min | |
| Dimensions | 2900*1980*2050 | |
| Weight | 3T | |
| Control system | PLC | |
| Main motor power | 5.5Kw | |
| The power of cutting motor | 4Kw | |
| Electrical | 220V/380V/440V | |
| Working pressure | 0.5-0.7Mpa | |
Frequently Asked Questions
- You can choose the shipping company on your own. Or use our forwarder, we will quote you the CIF price.
- If less than one container,we will choose LCL (less container load), it will be cost-efficiency. If you purchase two and above, we will use 20″, 40″ or HQ container according to the machines size.
Durmahvac is a mature brand in China. We have CE, ISO and SGS certification to prove our quality. We welcome your visit, seeing is believing.
- T/T (30% advance payment, and 70% balance paid one week before shipment)
- L/C (100% L/C at sight), this should be negotiated first.
We always prepare stock for our clients. Contact us to learn more details.
Normally 15 days.
Questions about machine? Write us!
Spiral Duct Forming Machine
What is Spiral Duct Forming Machine ?
The spiral air duct forming machine is mainly used for making round spiral air duct. The machine can automatically complete round spiral tube with different diameters and different lengths based on customers demand. Durmapress®company adopts the principle of using duct mold to form the spiral duct. Spiral duct machine is easy to operate and fast to form duct with accurate diameter.
Spiral Duct Forming Machine
The spiral duct forming machine needs to be used with round elbow machine, angle steel round rolling machine and etc, to complete the other work steps needed in spiral duct processing, Durmapress® company produces spiral duct forming machine and round elbow machine, angle steel round rolling machine and other equipment with high quality, also ensure that the pipe size processed out of precise appearance beautiful. So it can effectively help customers greatly improve the competitiveness of their products, Spiral duct machine has always been the most important equipment for round spiral duct. In order to make our products more competitive, we have optimized the structure of the machine for many times to make our machine has been greatly improved in speed and molding effect, and it has won unanimous praise from customers all over the world.
The Features of Spiral Duct Forming Machine:
- Spiral duct forming machine: Adopting duct mold structure, this machine is faster with more coincident diameter than traditional steel strip type spiral duct making the machine. The length of duct cutting can be controlled according to your own requirement with perfect cutting effect. Cutting method is non-noise cold shearing.
- Elbow making machine: The shrimp elbow machine adopts vertical working table with the switch of single side and bilateral sides. Advantages of this machine are the easy operation and perfect effect. Our company can provide two controlling types electric and hydraulic types for customers.
- Angle steel rolling machine: This machine can roll angle steel and flat steel according to the fixed size to meet the production of round duct flange sides.
