Specifications

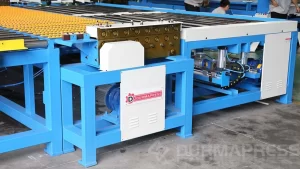

HCH Duct Manufacture Auto-line VI
Auto duct line VI is our latest auto duct line. With U type structure, it cover less space and reduce time of plate passing which achieves the productivity of each duct into twenty to twenty-three seconds. This full-auto line can complete the following processing once time : leveling, grooving, hydraulic notching and punching , size-fixed cutting, Pittsburgh lock forming, TDF flange forming, angle-iron flange forming and auto folding. It can produce three types of ducts: “L” shape, “U” or “square” shape. This line features high automation, high efficiency, low labor cost and less materials usage.
Basic parts:
1.Two sets of electric feeding frames(can put total four coilers)
2.One set of leveling and grooving device
3.One set of holes-punching device for supporting ducts mounting( Customer optional configuration)
4.Punching mounds
5.One set of electric feeding table( the front part)
6.Pittsburgh lock former
7.One set of electric feeding table( the latter part)
8.Duplex angle-iron flange former
9.Duplex TDF flange former
10. TDF hydraulic folder
Working Principle:
Coiler—leveling and grooving—holes punching for supporting bracket—angle punching and notching—Pittsburgh lock former—duplex angle-iron flange former– duplex TDF flange former–folding
